Cornell's North Campus Rises: A Masterclass in Modular Logistics and Social Architecture

Project Info

Project Name: North Campus Residential Expansion (NCRE), Cornell University

Architects: ikon.5 architects

Location: New York, USA

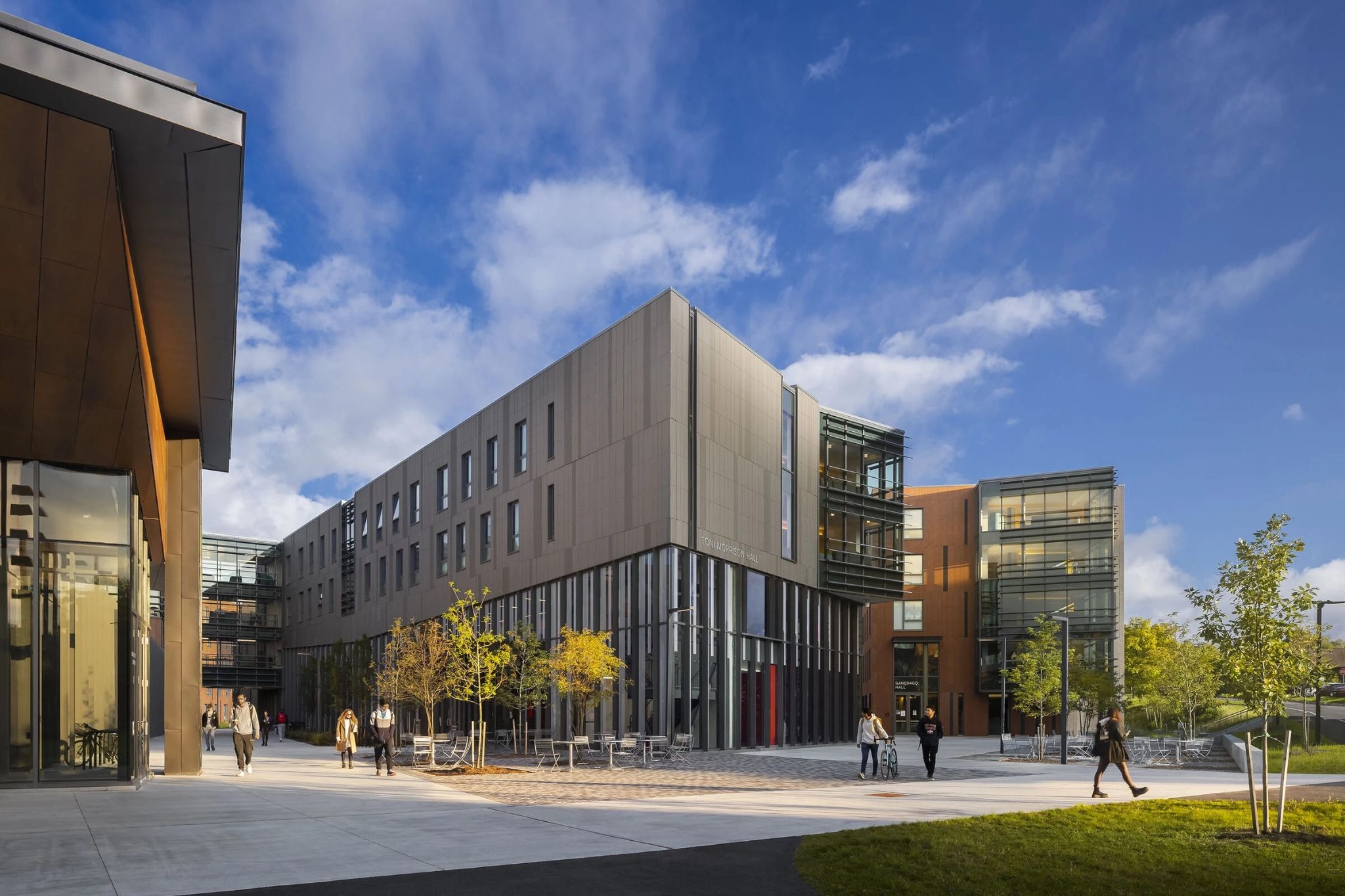

The clustered, courtyard-style residence halls utilize prefabricated panels and large transparent bases to foster a community "village" feel

Building at Speed: How Precast Technology Transformed Cornell's Campus

Cornell University’s North Campus Residential Expansion (NCRE) is a landmark project not just for its scale—accommodating a planned increase in student enrollment with over 2,000 beds—but for its unprecedented construction logistics. Designed by ikon.5 architects, the NCRE was built under a hyper-aggressive schedule that required the team to deliver the massive, 776,000 ft2 complex in just 18 months, a timeline successfully navigated through the strategic embrace of prefabrication and modular construction.

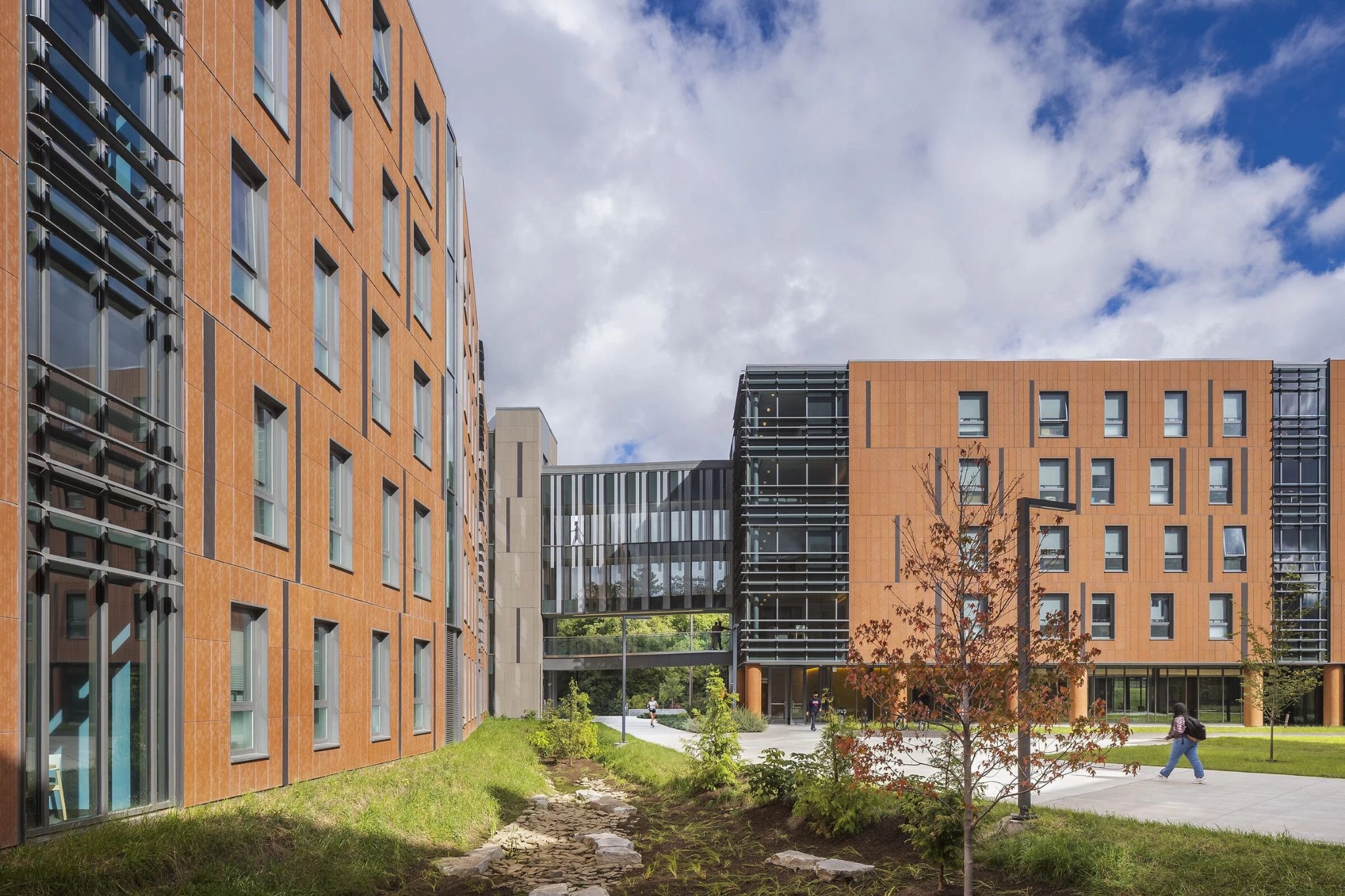

Pedestrian bridge links connect building wings across a green space, designed to encourage serendipitous student interactions

The core technical innovation lies in the building envelope. Facing tight deadlines and labor market shortages, the design pivoted from a traditional field-installed rainscreen system to a comprehensive, factory-built solution. The structure utilizes 1,544 insulated architectural precast concrete wall panels. These units were fabricated off-site as complete, insulating enclosures, incorporating an R-value of 24 and, most notably, featuring 69,371 custom terra cotta tiles embedded directly into the concrete. These prefabricated panels were simply shipped to the site, hung onto the structure, and sealed, drastically accelerating the façade completion and ensuring quality control independent of weather conditions. Furthermore, every suite bathroom was constructed as a fully finished modular pod in a factory, trucked to Ithaca, and slid into position, cutting months off the interior schedule.

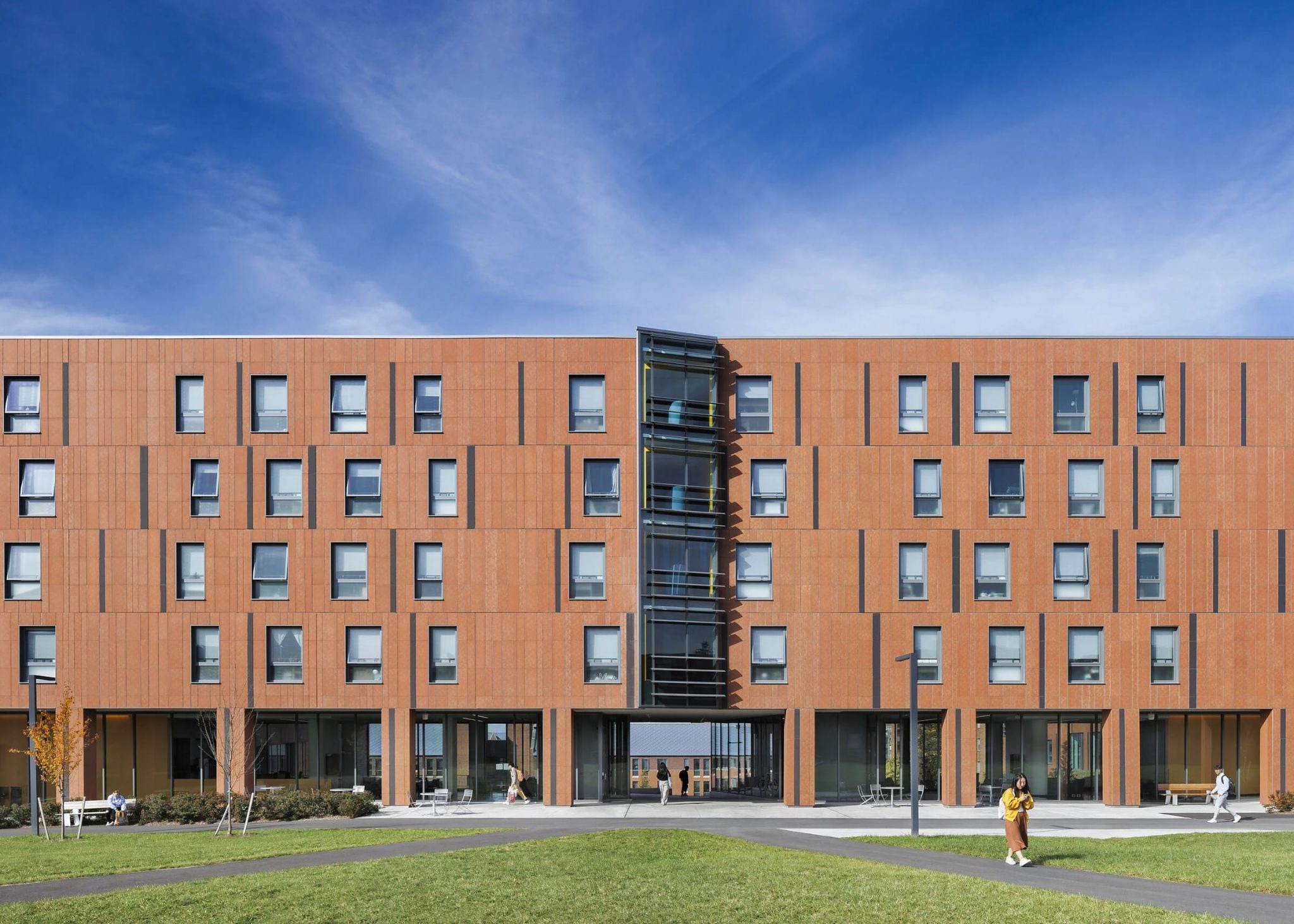

The façade features terracotta-embedded precast concrete, a high-tech solution to accelerate construction while respecting campus material tradition

Academic and Social Integration

Beyond the technical logistics, NCRE's architecture is a sophisticated response to Cornell's goal of fostering a vibrant, collaborative environment for its first and second-year students. The residences are organized into a series of three- to five-story courtyard buildings, a form specifically chosen to break down the massive scale of the project into approachable "villages" that harmonize with the adjacent campus.

The design uses transparency as a social catalyst. The ground floors, dedicated to public areas, communal kitchens, and collaborative study spaces, are wrapped in highly transparent glazing. This openness encourages "serendipitous collegial exchanges" and outward social interaction, making student activity visible to the surrounding campus. Upper-level residential lounges, positioned prominently at building corners, are also heavily glazed, acting as beacons of activity and framing essential views of the campus and surrounding gorges.

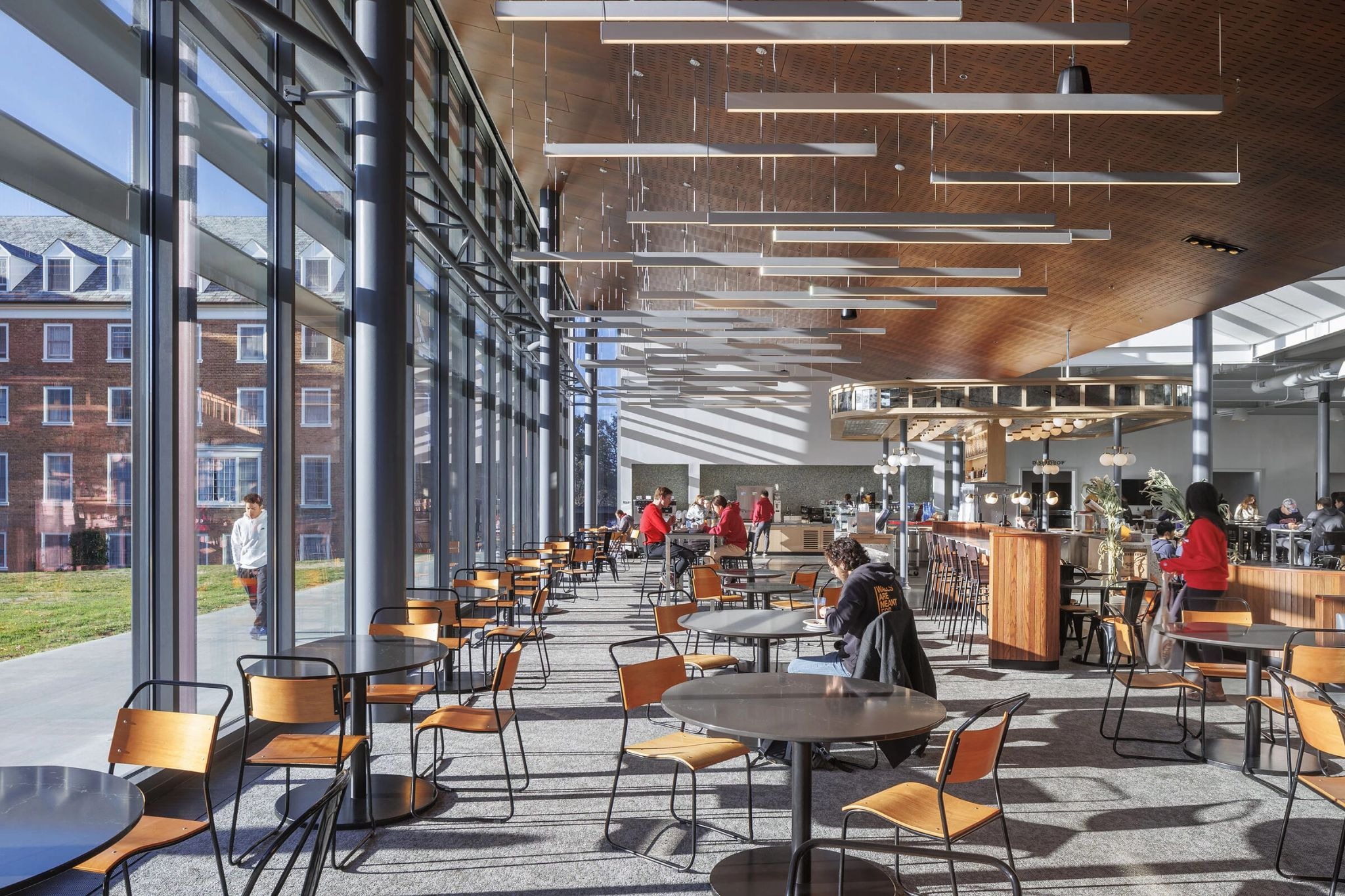

The highly transparent dining hall extends outward to the campus green, acting as a light-filled social catalyst for the complex

A Commitment to Green Infrastructure

The NCRE aligns seamlessly with Cornell’s institutional goal of achieving carbon neutrality by 2035. The project is designed to be 30 percent more energy efficient than the standard energy code and has achieved LEED Gold certification.

This efficiency is powered by connecting the facilities to Cornell's highly optimized district energy systems, which are anchored by Lake Source Cooling and the Combined Heat and Power Plant. Additionally, the site planning strategically integrates sustainable features, including rooftop photovoltaics and a system of rain gardens and stormwater planters that manage run-off and support native pollinator species, artfully embedding green infrastructure into the student experience.

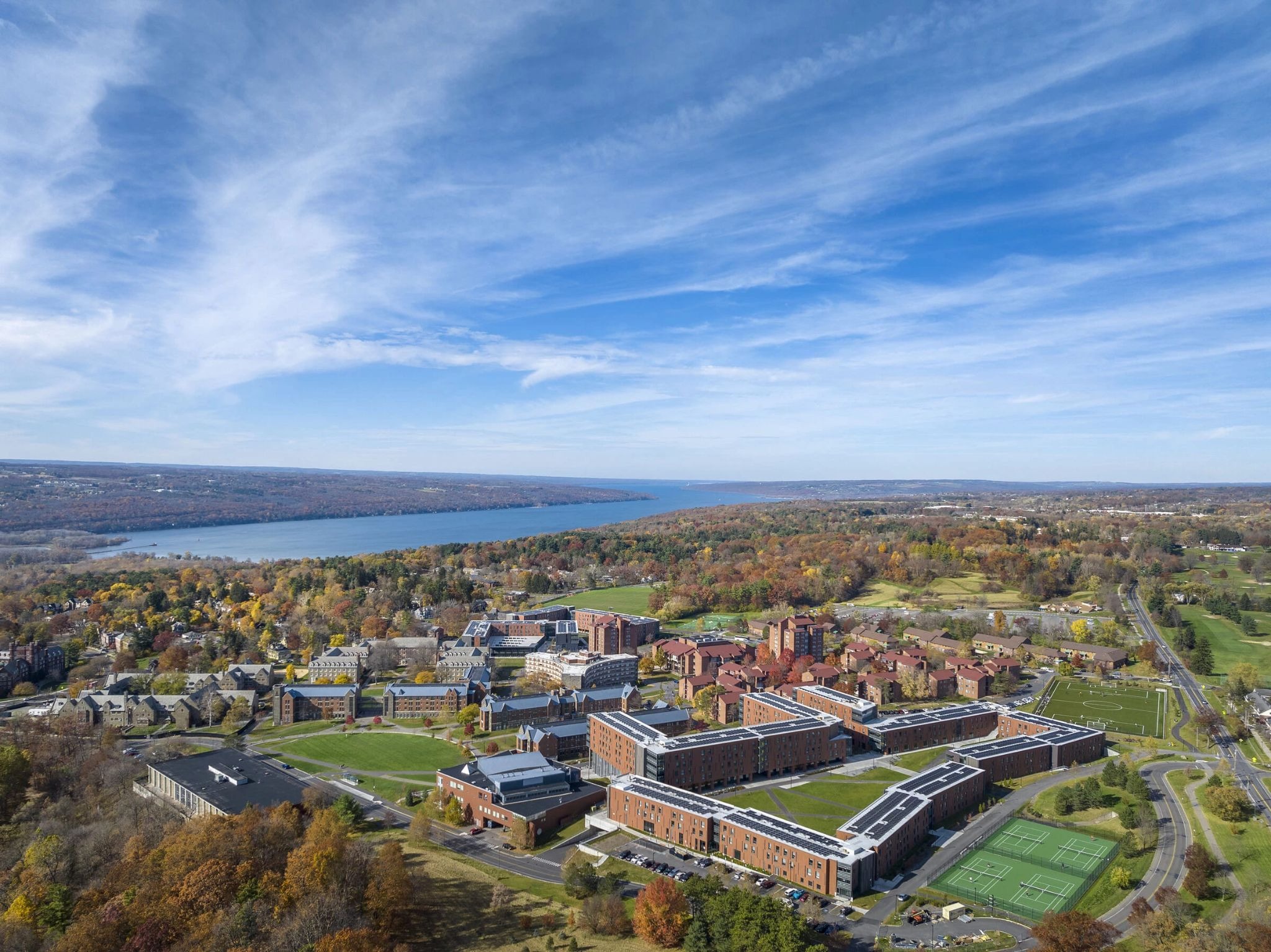

An aerial view confirms NCRE's comprehensive scale, integrating over 2,000 beds into a coherent, LEED Gold certified campus extensio

By leveraging cutting-edge construction technology and deeply integrating social and environmental design, the NCRE not only addresses a critical housing need but provides a forward-looking model for how academic infrastructure can be built faster, greener, and smarter.

PHOTO CREDIT: Brad Feinknopf
